Diagnostic Trouble Codes (DTC) and Snapshot

Select View Selected to itemize module Diagnostic Trouble Codes (DTC) or all module DTC.

Select Print All DTC.

Use the drop-down arrow to toggle the view between KM and Miles.

The DTC toolbox displays DTC codes, descriptions, timestamp and odometer value in kilometers or miles by use of the Odometer unit preference selector.
The standard view is to show all stored DTC from modules that have responded.

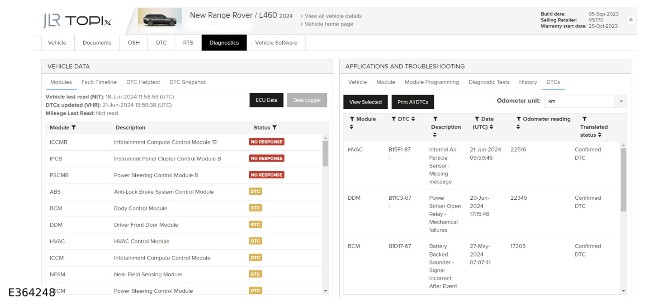

Select a module in the VEHICLE DATA panel that has an amber DTC label. The modules DTC will be displayed in the APPLICATIONS AND TROUBLESHOOTING panel.

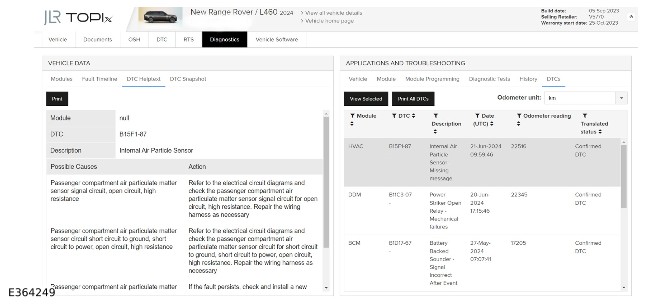

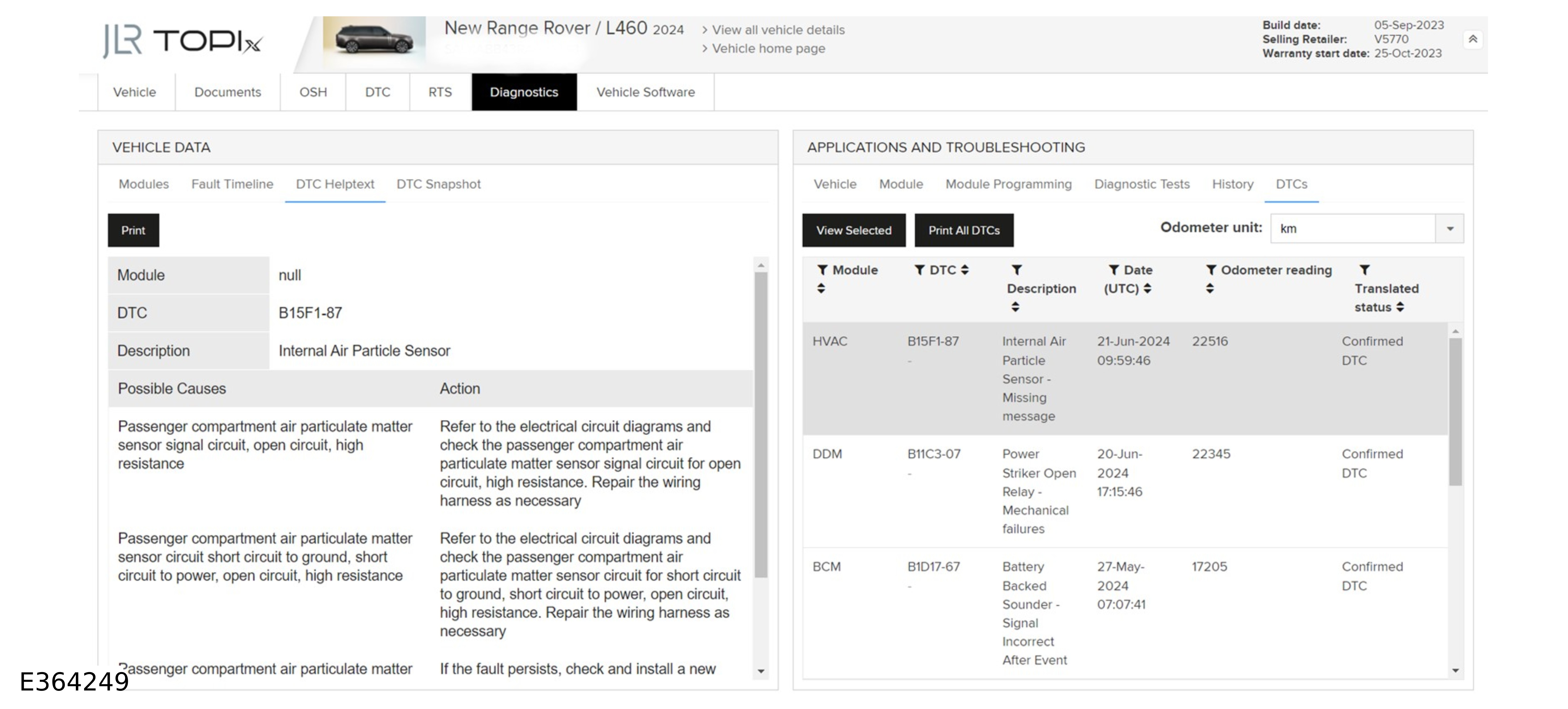

Select a DTC within the APPLICATIONS AND TROUBLESHOOTING panel and then select DTC Help text to view the DTC Help text within the VEHICLE DATA panel.
DTC information can be printed or saved to the local device by selecting Print All DTC.

Scroll up / down to view all Snapshot data information

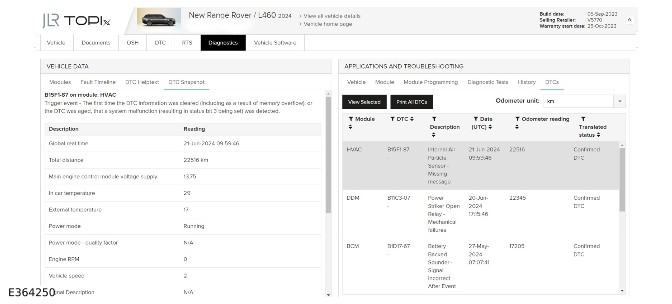

If a module DTC supports ‘Snapshot’ information, TOPIx Cloud Diagnostics will display the Snapshot information. For further information (TOPIx User Guide/Diagnostics).
Use the scroll bar up / down the screen to view relevant data.
The information displayed will vary between modules, because the data captured is specific and relevant to the fault condition.

For more information on Toolbox and Applications select the links below.

Refer to: Troubleshooting

(TOPIx Cloud Diagnostics/Troubleshooting Guide).
Refer to: General Diagnostic FAQ’s

(Frequently asked questions/4. Diagnostics).

Diagnostic Trouble Codes (DTC) and Snapshot (G4400516)
